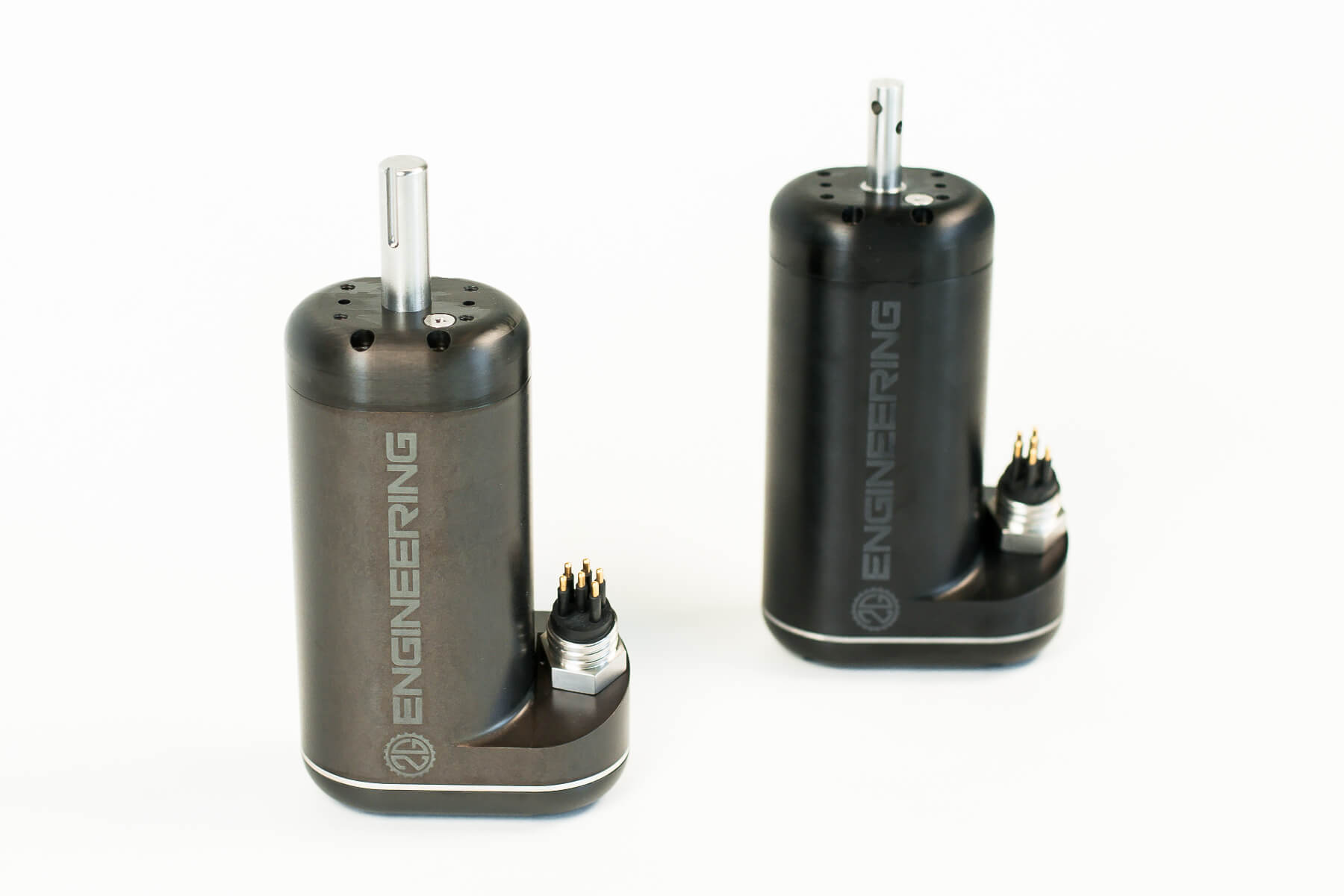

Product Overview

Like all 2G actuators, the 2000 Series rotary actuator family has fully integrated positioning feedback and motor control systems. The angular measurement system on the units never needs calibration or “homing” on power on.

All 2G actuators are IP69K rated – providing total protection from water and dust ingress, and protection from steam-jet cleaning.

There are two variants of 2000 rotary available: the High Speed model and the High Torque model. The High Speed unit is capable of a maximum rotational force of 10 ft. lbs. at a maximum rotational speed of 60 RPM at 24 V whereas the High Torque unit is capable of 30 ft. lbs. continuous use and 50 ft. lbs. peak at a maximum rotational speed of 9 RPM at 24 V.

All units in this family have RS-232, RS-485, and analog control options as standard.

2G Engineering is an AS9100 certified organization.

Testing & Verification

Each unit sold undergoes a rigorous factory acceptance test before it leaves our facility. A copy of the test records are included with each unit.

If a customer has specific requirements for testing please contact us and we will be happy to adapt our procedures to meet your requirements.

Product Configurations

The 2000 Series rotary actuator units have a wide range of standard configuration options available, including:

Output speed and force
Output shaft length and style
Connector pinout
Connector type
Dual connector option for redundant power and data
Dual connector can also be used for pass through power and data
Units can be made from 316 stainless steel, 6061 aluminum, or grade 5 titanium. If you need a different material please contact us for a quote.

Product Applications

The 2000 Series rotary actuator is well-suited to a variety of applications, including:

Valve actuation
Torque tools
Mobility systems
Control surface actuation (wings / rudders)
Winches / tensioner systems

Technical Specifications Download Product Datasheet PDF Request a
Product Quote Compare Rotary Actuators Access Product Manuals & Support

Material Compositions

The 2000 Series rotary actuator is available for ordering in aluminum, stainless steel or titanium construction, depending on project application and requirements.

Ft-lbs of Torque

Combine intelligence with the raw power of 50 ft-lbs maximum output force, which can be controlled via the software
management system.

IP69K

Rated

The 2000 Series meets the IP69K rating to provide total protection from water and dust ingress and steam-jet cleaning, as well as many other subsea conditions.

150+

Hours Tested

Our dedicated team of test engineers run the actuator through a rigorous series of tests to validate performance under simulated environmental conditions.

General Specifications

Absolute angle feedback and turn counting
Maximum rotational force 10 ft-lbs
(High Speed model)
Maximum rotational speed 60 RPM at 24 V
(High Speed model)
Maximum rotational force 50 ft-lbs
(High Torque model)
Maximum rotational speed 9 RPM at 24 V
(High Torque model)
Brushless DC motor
Oil-filled - self-contained - compensated

On-Board Motor Driver & Servo System

Configurable current limits, power, and speed
RS-232 & RS-485 serial interface
Optional Analog, Modbus, or CAN Bus
Contactless, non-wearing, absolute position angular encoder
Does not require homing
0.1 degree resolution

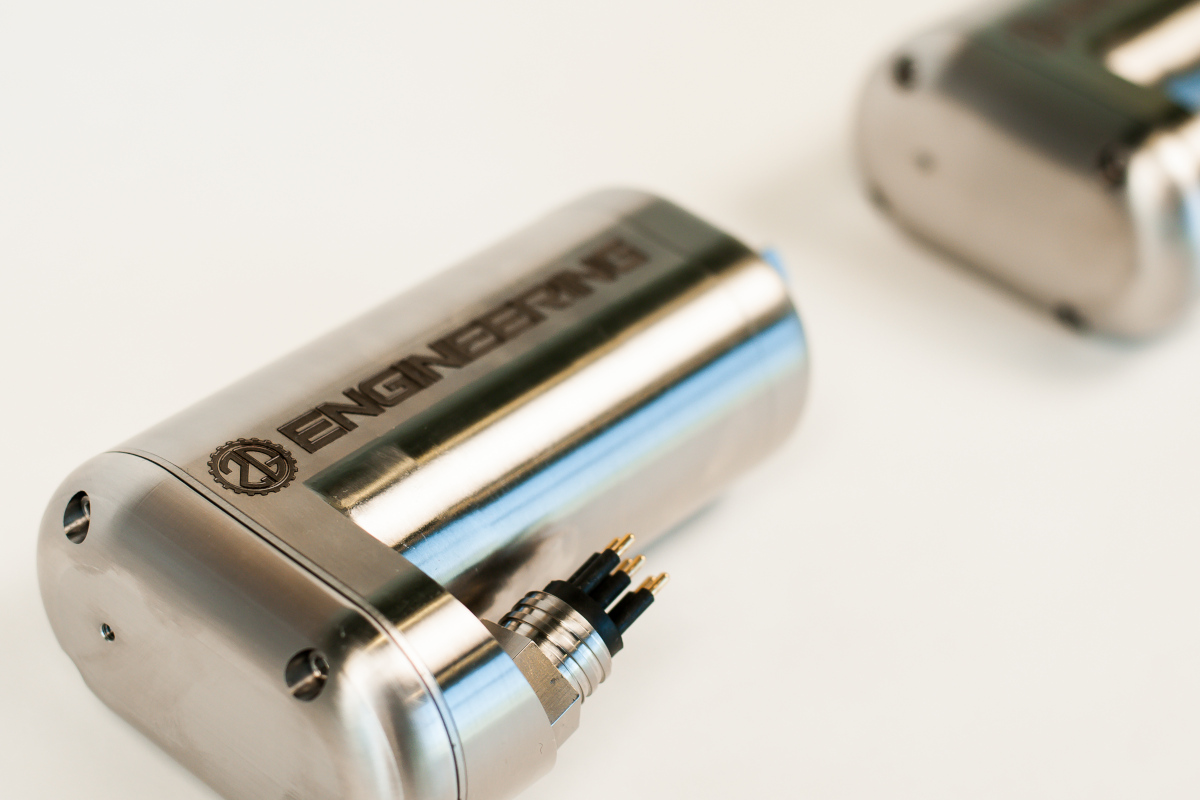

Available Materials

Grade 5 - Titanium
316 - Stainless steel
6061 - Aluminum - Black

Operating Conditions

Voltage 12 <-> 32 V DC nominal
Operating depth greater than 10,000 ft
Operating temperature range: -20°C to 65°C
Storage temperature range: -30°C to 85°C

Current Draw at 24 V DC

Idle current = 0.03 A
Motor ON braking = 0.12 A
Max torque @ Stall = 5 A
40 RPM at 4 ft-lbs = ~1.8 A
(High Speed model)
5 RPM at 5 ft-lbs = ~1 A
(High Torque model)

Shaft Loads

Radial - 25 lbs max
Thrust - 10 lbs max

Download Product Datasheet

2G Engineering Rotary Actuators

Subsea Rotary Actuator

2000 Series

Max. Output Force 30 ft. lbs
Max. Speed 60 RPM
Operation Voltages 12, 24, 32 V DC
Weight in Air 5.0 lbs
Operation Depth >10,000 ft.
Storage Temp. -30°C to 85°C
Operation Temp. -30°C to 65°C

Subsea Rotary Actuator

3000 Series

Max. Output Force 120 ft-lbs
Max. Speed 50 RPM
Operation Voltages 24 <-> 300 V DC
Weight in Air Not Available
Operation Depth >22.500 ft.
Storage Temp. -30°C to 85°C
Operation Temp. -20°C to 65°C

Subsea Rotary Actuator

6000 Series

Max. Output Force 500 lbs
Max. Speed 1000 RPM
Operation Voltages 12 <-> 400 V DC
Weight in Air Not Available
Operation Depth >10,000 ft.
Storage Temp. -30°C to 85°C
Operation Temp. -30°C to 65°C
